The Ringways Map is here

The wait is over! The full map of the Ringways, London’s unbuilt urban motorway network, is now online.

If you’ve been following Roads.org.uk for a while you’ll know our Ringways pages are a long-term work in progress. We’ve hosted a mini-site covering this epic research project into London’s unbuilt roads since 2006, but over the last eight years we’ve been progressively updating and expanding our coverage to provide detailed articles on all the unbuilt roads. Getting to this point has required twenty years of archive research.

At the top of each page you’ll see a route map showing you the motorway in question, complete with all its junctions and connections to other roads, both real and planned. Those route maps are small extracts from a London-wide map that has been assembled in stages since 2016 but which, until now, has been under wraps.

Today it’s finally available for you to explore.

See it for yourself

To take a look, just head to SABRE Maps - the online map archive of the Society of All British and Irish Road Enthusiasts, which brings together hundreds of historic maps of the UK from the 20th century, which you can zoom, scroll and layer on top of each other to compare changes over time.

Roads.org.uk has teamed up with SABRE to host the Ringways maps because SABRE’s incredible mapping is light years ahead of anything we could provide, and it gives you the chance to overlay the Ringways onto other historic maps to see how they would have fitted in to London in the 1960s and 70s.

It’s just the latest in decades of collaboration between our two sites, and if you’re reading this but you haven’t yet visited SABRE… what are you waiting for?

See it like it’s never been seen before

It’s worth explaining just how unique this map is. Nobody has ever compiled a map of the Ringways before. This is the first map of its kind and it is totally, completely unprecedented.

By that we don’t just mean that no researcher or historian has ever made a map of the routes as part of their research. We mean that no complete map of the Ringways has ever been made, including by the people who designed them.

The planners, engineers and politicians who devised and promoted the Ringways back in the 1960s and early 1970s had an idea of the network they were creating, of course. They had high-level schematic maps of the pattern of roads they wanted to produce, but most were little more than thumbnail sketches.

Detailed plans and engineering drawings of many routes were made, but they were made in isolation. Since the work was split between the Ministry of Transport and the Greater London Council, and each of those designed some schemes in house and outsourced others to firms of consulting engineers, and many different firms were employed at different stages, the plans that existed were for individual projects and no one person or authority had access to them all.

As a result, there was no plan of the whole system that showed more than approximate lines on a map. In the 1960s, you could not have seen how all the schemes fitted together, how every route and every junction linked up, how the Primary Route Network connected to and complemented the Secondary Route Network. The people who designed the Ringways, in other words, never saw the complete picture that they were creating.

But you can. For the first time, the Ringways Map puts it all in one place.

Exploring the Ringways

SABRE Maps is easy to use, but if you’ve never been before, this is your quick guide to making the most of it.

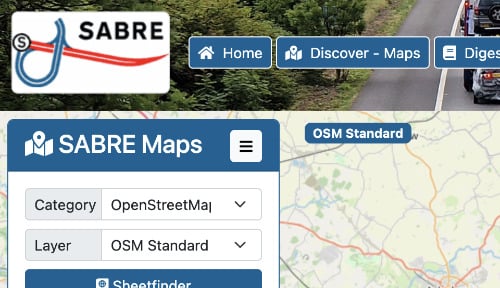

You can choose map layers from the menus, by selecting a category and then a specific layer, or use the Sheetfinder (also in the menu) to see which maps are available in a given place. The Ringways Map layer is under the “Highway Plans” category, but the link above will take you straight there.

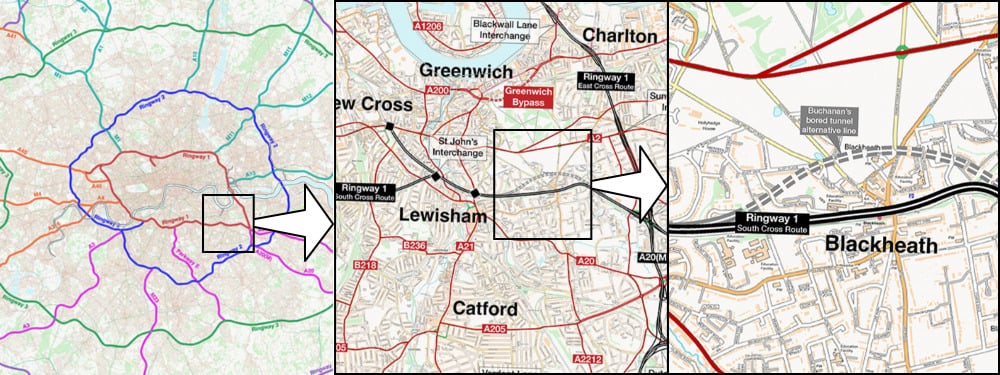

To move around, just drag the map. You can zoom in and out, and you’ll see the map changes as you do. At distant zoom levels there’s a colour coded overview that shows you the overall Ringways network and how the different routes fit together; the colours match the ones we use to group the routes on our main Ringways page. As you zoom in closer you’ll see the districts of London, roads and junctions labelled up, with more detailed labels the closer you get.

The map uses fairly simple conventions - the main one is that roads classified by the Greater London Council as being part of their planned Primary Road Network (PRN) are black, while those in the Secondary Road Network (SRN) are red.

GLC Primary Route Network		Primary Route
		Approximate or assumed line of Primary Route
		Primary Route in tunnel
		Primary Route cancelled or deleted before start of GLDP Inquiry
		Junction of unknown layout on Primary Route
		Junction of unknown layout cancelled or deleted before start of GLDP Inquiry
GLC Secondary Route Network		Secondary Route, dual carriageway
		Secondary Route, single carriageway
		Secondary Route in tunnel
		Junction of unknown layout on Secondary Route
Other symbols		Other main roads outside Greater London, dual carriageway
		Other main roads outside Greater London, single carriageway
		Greater London boundary

The map is overlaid on modern-day Ordnance Survey mapping, and at closer zoom levels the width of the lines is about accurate for the width of the roads involved, so if you see a building obscured by a line it would almost certainly have been demolished. The exact width of the black lines representing the PRN, for example, matches the width of a dual four-lane motorway with double hard shoulders, which was the expected standard for significant parts of the network.

Then, to see the roads against older mapping, you just need to switch on the Map Fader.

SABRE Maps has just had a major upgrade to its Map Fader feature. Previously it let you put a modern OpenStreetMap layer over the top of whatever you were looking at, and fade it in or out to compare the two. But now it lets you choose any other layer on SABRE Maps, and we strongly recommend you have a look at the Ringways against the OS One Inch map of London from 1971, which shows you the city exactly as it stood when the motorways were planned.

To try it out, just select Map Fader from the SABRE Maps menu, then choose “OS One Inch Tourist” > “1971 One Inch Tourist”. You can use the slider to fade it in and out over the top of the Ringways and see how they fit together.

Highlights

There’s lots to explore on the full Ringways Map, since large parts of it have never been available before - what you’ve seen on the Ringways pages have been a series of small extracts, and the full map shows you much more of London at much closer zoom levels.

We won’t spoil all the surprises, but you might like to look for the following as you look around.

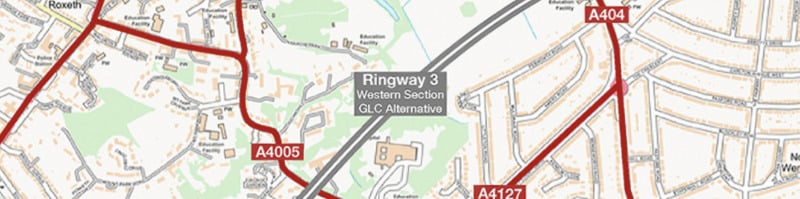

In North West London, there’s the full route of the GLC’s 1965 alternative plan for Ringway 3. They didn’t like the Ministry’s proposals at all and came up with their own suggestion, which was an urban route through Harrow and Stanmore. The plan is described in detail on our Ringway 3 Western Section page, but its route hasn’t been available on the map until now.

If you switch on the Map Fader, you’ll find all sorts of places where the Ringways dodge through gaps in the urban area that have since been closed up, helping to explain their routes.

Have a look, for example, at the Ringway 4 South Orbital Road’s line around Feltham, where a neat gap existed for the motorway to pass through, or the A13 Relief Road south of Dagenham, whose exact alignment turns out to have been carefully chosen to thread its way through the buildings of the Ford motor plant.

And if you’re interested in New Towns, it might be worth scrolling north east to Harlow. (You won't be able to compare it with the 1971 map, but it goes well with the 1974 Landranger... or just on its own.)

The publication of the Ringways Map means our Ringways mini-site is almost complete - this is one of the biggest and most complicated elements, and it’s now online. To get to this point has taken years of work to produce the map itself, and considerable effort from SABRE’s development team to create new Map Fader functionality to allow different map layers to be selected. One of the reasons it’s taken so long to get here is that we wanted to wait until all the features were in place before launching it.

We’re incredibly excited to share the map with you. It’s full of surprises. Let us know what you find in the comments below.

Take me to the map!

Thank you to the SABRE Maps team for all their support in hosting the Ringways Map - especially Steven Jukes (also of Pathetic Motorways) who took care of georeferencing and testing, and SABRE’s developers who created and deployed new software features that made all this possible.
